Product Description

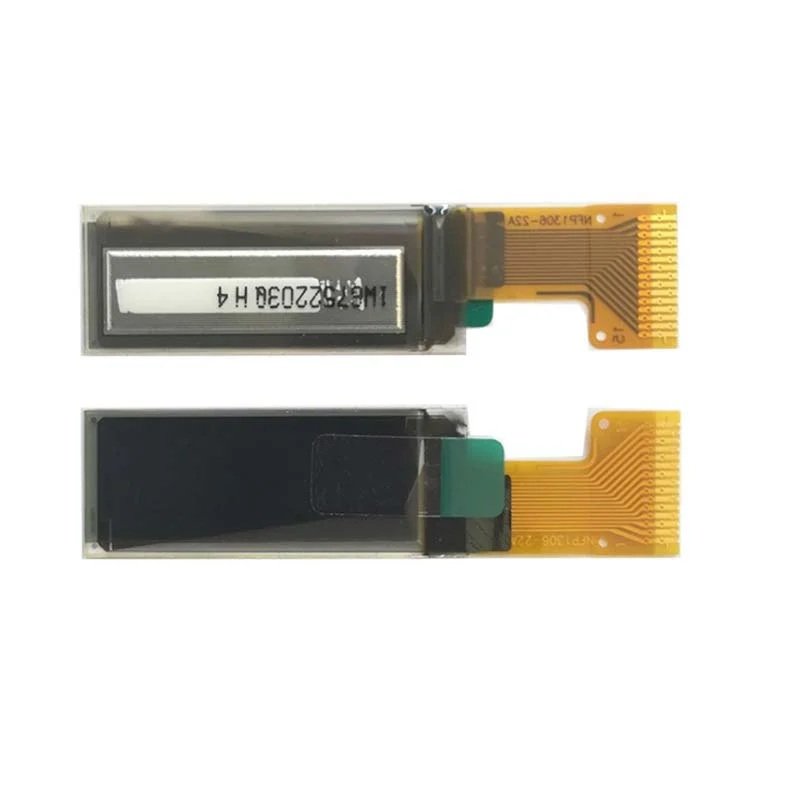

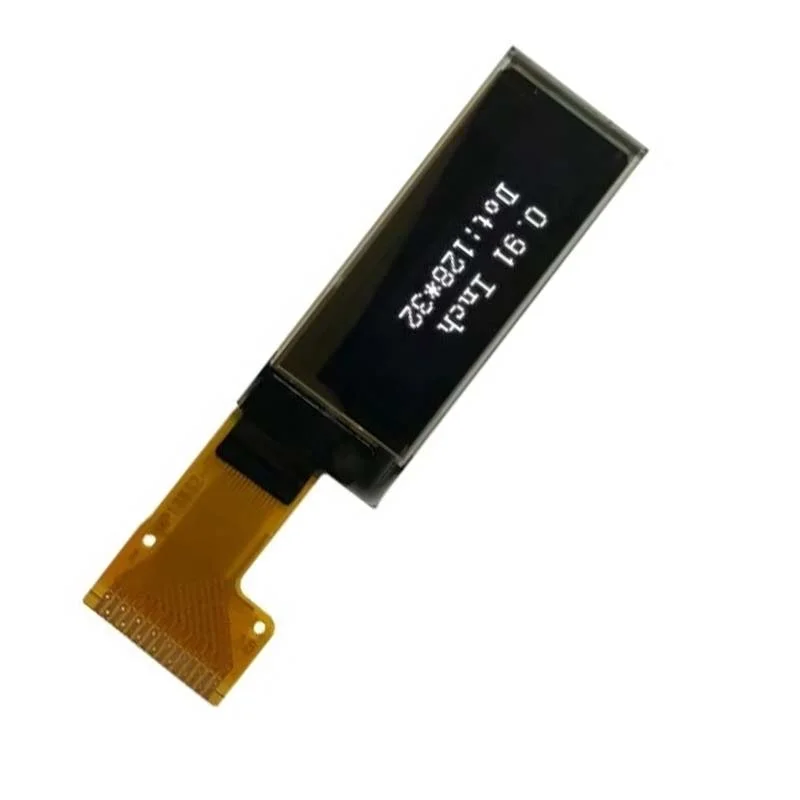

The QIHAN HQ099PMBX-1 is a compact 0.91-inch OLED display module designed for embedded systems requiring ultra-low power consumption, high contrast, and reliable display performance. Featuring a resolution of 128×32 pixels, this OLED module provides sharp text and graphic display quality while maintaining a compact footprint for space-limited applications.
Built with OLED self-emitting technology, the display does not require a backlight, resulting in lower power consumption, deeper blacks, and superior image contrast compared with conventional LCD displays. With an ultra-wide viewing angle greater than 160°, users can view content clearly from almost any direction.
The module supports a 4-wire SPI interface and operates at a wide voltage range compatible with 3.3V power systems. QIHAN also supports customized interfaces and OEM solutions for different project requirements.
Designed for stable long-term operation, this display is suitable for wearable devices, industrial instruments, medical equipment, IoT products, and embedded development platforms.
Highlights
- Compact 0.91-inch OLED display module
- Resolution: 128 × 32 pixels
- Built-in SSD1306 controller IC
- OLED self-emitting technology without backlight
- Extremely wide viewing angle (>160°)
- Ultra-low power consumption design
- High contrast and fast response performance
- Supports 4-wire SPI communication interface
- Single 3.3V power supply operation
- Compact structure for embedded applications
- Supports various MCU platforms
- OEM and customization support available
Product Specifications
| Parameter | Specification |
|---|---|
| Model No. | HQ099PMBX-1 |
| Display Size | 0.91 Inch |
| Display Type | OLED |
| Resolution | 128 × 32 Pixels |
| Display Color | White / Blue (Optional) |
| Viewing Angle | >160° / ALL View |
| Driver IC | SSD1306 |
| Interface | 4-wire SPI |
| Supply Voltage | 3.3V |
| Touch Driver IC | Can Be Customized |

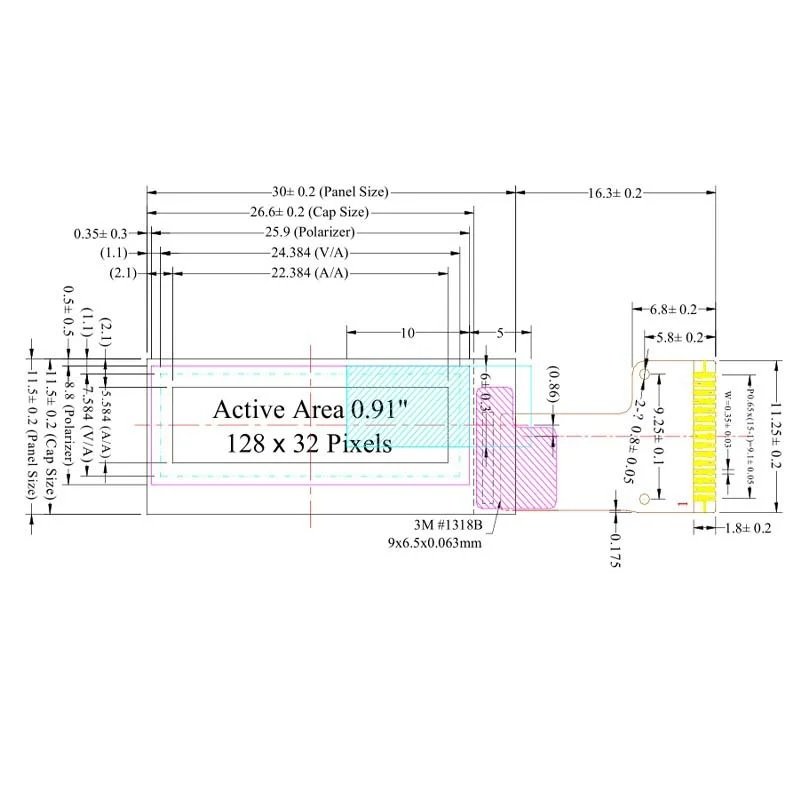

| Active Area | 22.384 × 5.584 mm |
| Display Mode | Passive Matrix OLED |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -30°C ~ +70°C |
| Power Consumption | Ultra-Low Power |
| Backlight | Not Required |
Applications
Wearable Electronics
- Smart watches
- Fitness trackers
- Portable devices
Industrial Equipment
- Portable testing instruments
- Industrial controllers
- Data acquisition systems
Medical Devices
- Monitoring equipment
- Portable healthcare devices
- Diagnostic systems
Smart Home & IoT
- Smart control panels
- IoT devices
- Home automation systems
Security Systems
- Access control systems
- Security monitoring devices
- Authentication equipment
Embedded Development Platforms
- Arduino projects
- Raspberry Pi projects
- STM32 systems
- ARM and MCU applications
FAQ
Q1: What are the advantages of OLED displays over traditional LCD displays?
OLED displays offer:
- Higher contrast ratio
- Wider viewing angle
- Lower power consumption
- Faster response speed
- No backlight required
- Slim and lightweight design
Q2: Which controller IC does the HQ099PMBX-1 use?
The module uses the SSD1306 controller IC, ensuring stable communication and reliable display performance.
Q3: What communication interface does this display support?
The standard module supports a 4-wire SPI interface. Customized communication interfaces may be available according to project requirements.
Q4: Is this OLED module compatible with Arduino and Raspberry Pi?
Yes. The display can be integrated with:
- Arduino
- Raspberry Pi
- STM32
- PIC
- AVR
- ARM
- 8051 microcontrollers
Q5: Does the display require a backlight?
No. OLED technology generates light directly from pixels, eliminating the need for a backlight and reducing power consumption.
Q6: Can QIHAN provide customized OLED display solutions?
Yes. QIHAN supports customization including:
- Interface options
- FPC design
- Display color selection
- Mechanical structure modifications
- OEM and ODM services
