Product Description

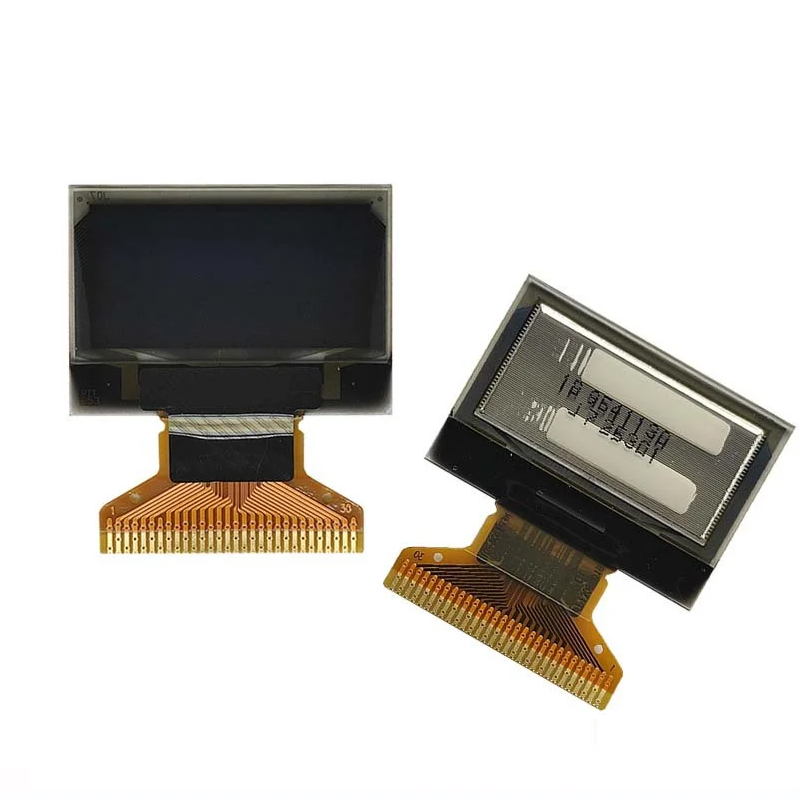

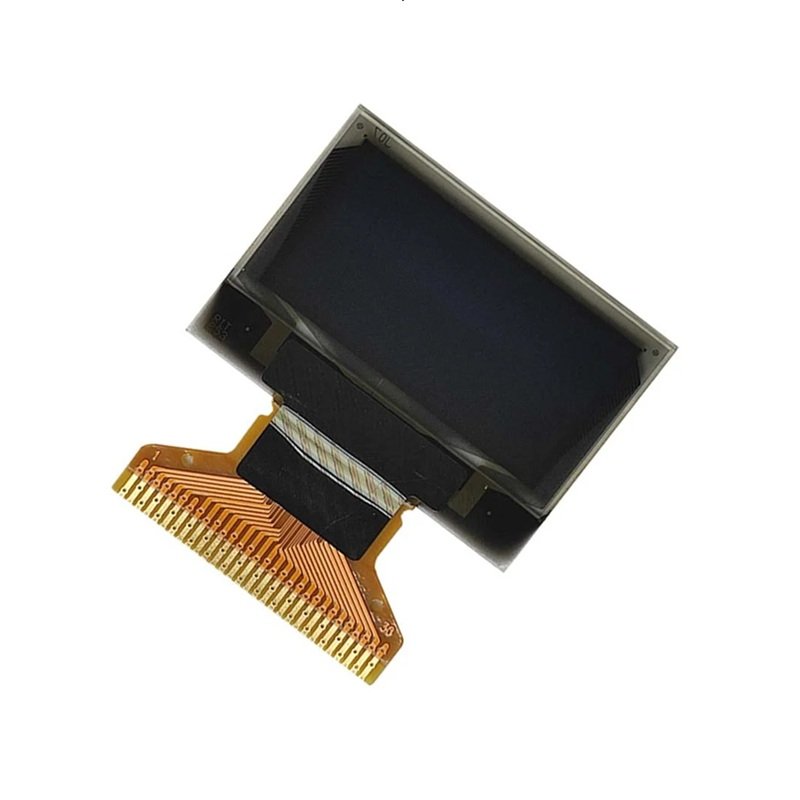

The QIHAN 0.96 Inch OLED Display Module (Model: HQ096128064PMWX-1) is a compact and high-performance PM OLED display designed for embedded systems, wearable devices, industrial control equipment, and portable electronics. Featuring a 128×64 resolution with self-emissive OLED technology, it delivers crisp text, sharp graphics, and high contrast without requiring a backlight.
Unlike traditional LCD modules, the OLED display produces light directly from each pixel, resulting in lower power consumption, faster response times, and excellent readability from virtually any angle. Supporting multiple communication interfaces including 4-wire SPI, I2C, 6800, and 8080 interfaces, the module provides flexible integration options for a wide range of microcontrollers and development platforms.
The compact form factor, 3.3V operating voltage, and customizable touch driver support make this display suitable for both consumer electronics and industrial applications.
Highlights
- 128×64 high-resolution OLED display for clear text and graphics
- PM OLED technology with self-emitting pixels
- Multiple interfaces: SPI / I2C / 6800 / 8080
- Wide viewing angle for excellent readability
- Compact 0.96-inch size for space-limited applications
- Low power consumption design
- Supports White / Yellow / Blue display colors
- 3.3V power supply for embedded systems
- Custom touch driver support available
- Fast response speed compared with conventional LCD modules
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | HQ096128064PMWX-1 |
| Display Size | 0.96 Inch |
| Display Type | PM OLED |
| Resolution | 128 × 64 |
| Brightness | 150 cd/m² |
| Display Color | White / Yellow / Blue |
| Power Supply | 3.3V |
| Interface | 4-wire SPI / I2C / 6800 / 8080 |
| Viewing Direction | All View |
| Active Area | Approx. 21.7 × 10.9 mm |
| Touch Driver IC | Customizable |
| Operating Temperature | -40℃ ~ +85℃ (customizable depending on application) |
| Storage Temperature | -40℃ ~ +90℃ |
| Response Time | <10ms |
| Driver IC | SSD1315 or equivalent |
| Application Type | Embedded systems / portable electronics |
Features & Benefits
High Contrast and Sharp Display Quality
OLED technology delivers vivid display performance with excellent contrast ratios. Text and icons remain sharp and readable even in low-light environments.
Ultra-Low Power Consumption
The self-emissive structure only powers active pixels, significantly reducing energy consumption compared to traditional LCD displays.
Flexible Interface Support
Supports multiple communication protocols including:
- I2C
- 4-wire SPI
- 6800 Parallel
- 8080 Parallel
This allows easy integration with various host controllers and processors.
Compact Design for Space-Limited Products
The small 0.96-inch size makes the display ideal for portable and compact products without sacrificing readability.
Wide Viewing Angle
The ALL View design ensures consistent image quality from different viewing positions.
Industry Applications
Wearable Devices
Suitable for:
- Smart watches
- Fitness trackers
- Medical wearable devices
- Portable health monitors
Industrial Equipment
Widely used in:
- Instrument panels
- Measuring equipment
- Industrial controllers
- Smart sensors
Consumer Electronics
Ideal for:
- Smart home devices
- Portable electronics
- DIY projects
- Audio devices
- Handheld products
Embedded Development Platforms
Compatible with:
- Arduino
- ESP32
- STM32
- Raspberry Pi
- ARM development boards
FAQ
Q1: What are the advantages of OLED compared with LCD?
OLED displays do not require backlighting. They provide:
- Higher contrast
- Lower power consumption
- Faster response time
- Wider viewing angle
- Thinner structure
Q2: Which interfaces are supported?
The module supports:
- 4-wire SPI
- I2C
- 6800 parallel
- 8080 parallel
Users can select the appropriate communication method according to project requirements.
Q3: Can the display color be customized?
Yes. Standard colors include:
- White
- Yellow
- Blue
Customized display colors may also be available for volume projects.
Q4: Can this display work with Arduino?
Yes. The module can be integrated with Arduino using common OLED libraries and is also compatible with ESP32, STM32, and Raspberry Pi platforms.
Q5: Is touch functionality supported?
The standard display module does not include touch functionality, but customized touch driver solutions are available based on project requirements.
Q6: Is it suitable for industrial environments?
Yes. With a wide operating temperature range and stable OLED performance, the module can be used in industrial control and monitoring applications.
Why Choose QIHAN OLED Display Solutions?
- Professional LCD/OLED manufacturer
- Custom interface solutions
- OEM/ODM capability
- Engineering technical support
- Stable quality control process
- Flexible mass production capacity
For custom display requirements, interface modifications, or OEM projects, QIHAN can provide tailored display solutions for your applications.
