OLED Displays Manufacturer
QIHAN provides a wide range of OLED display modules including graphic OLED displays, character OLED displays, round OLED displays, flexible OLED displays, and full-color AMOLED displays. With superior contrast, ultra-fast response times, and wide viewing angles, our OLED solutions deliver outstanding readability for industrial, medical, consumer electronics, smart home, and wearable applications.
Industrial AMOLED and PMOLED Displays
OLED (Organic Light Emitting Diode) displays generate light from each individual pixel, eliminating the need for a traditional backlight. This self-emissive technology enables true blacks, vivid colors, thinner designs, and exceptional viewing angles.
Compared with conventional LCD displays, OLED modules offer higher contrast ratios, faster refresh rates, lower power consumption in dark interfaces, and superior visual performance in compact devices.
Whether you need a standard OLED module or a fully customized display solution, QIHAN’s engineering team can help you find the right display for your application.
Why Choose OLED Displays?
Exceptional Image Quality
OLED displays deliver true black backgrounds and extremely high contrast ratios, producing sharper text, richer graphics, and enhanced visibility in various lighting conditions.
Ultra-Wide Viewing Angles
Maintain excellent image quality from almost any viewing direction without color shifting or contrast degradation.
Fast Response Time
OLED technology offers near-instantaneous pixel response, making it ideal for dynamic interfaces, animations, and real-time information displays.
Slim and Lightweight Design
Without the need for a backlight, OLED modules can be significantly thinner and lighter than traditional LCD solutions.
Low Power Consumption
For dark-themed interfaces and battery-powered products, OLED displays can provide excellent power efficiency and extended operating life.
Wide Operating Temperature Range
Many OLED modules are designed for reliable operation in demanding industrial and outdoor environments.
Custom OLED Display Solutions
Designed Around Your Product
Every application has unique requirements. QIHAN offers comprehensive OLED display customization services to ensure seamless integration into your device.
Customization options include:
- Display size and resolution
- Character or graphic OLED formats
- Monochrome, PMOLED, and AMOLED technologies

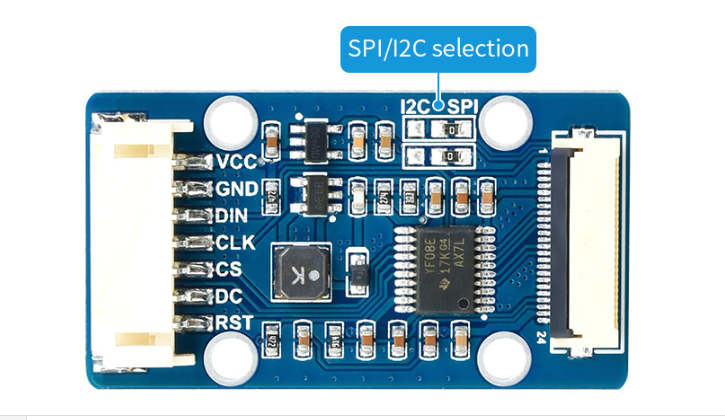

- Interface selection (SPI, I²C, MIPI, Parallel)
- Connector type and cable length
- FPC design customization
- Touch panel integration
- Optical bonding
- Cover lens customization
- High-brightness enhancement
- Wide temperature solutions
- Mechanical housing design
- Custom logos and UI graphics
Our engineers work closely with you throughout development to create an OLED display solution tailored to your exact specifications.
Industrial OLED Displays Designed for Superior Visual Performance
QIHAN offers a wide range of OLED display modules, including graphic OLEDs, character OLEDs, PMOLED displays, AMOLED displays, round OLEDs, and fully customized display solutions.Featuring high contrast ratios, vivid image quality, wide viewing angles, and ultra-fast response times, OLED technology provides an exceptional user experience while maintaining a slim, energy-efficient design.
Whether for industrial control systems, medical instruments, smart home devices, wearable technology, automotive electronics, or consumer products, QIHAN delivers reliable OLED display solutions backed by engineering expertise, customization capabilities, and stable long-term supply.Below is a very small selection of our OLED Displays for industrial designs. Available in different shapes including circular. Please contact us for your specific requirements.
Hot OLCD Product Data Sheet
| Size | Module No. | Color | Resolution | Active Area (mm) | Module Size (mm) | Brightness (Typ) |
|---|---|---|---|---|---|---|
| 0.96″ | HQ0962864PMW-1 | White | 128×64 | 21.74 × 10.86 | 38.5 × 28.5 × 2.37 | 120 cd/m² |
| 0.96″ | HQ0962864PMB-1 | Blue | 128×64 | 21.74 × 10.86 | 38.5 × 28.5 × 2.37 | 120 cd/m² |
| 0.96″ | HQ0962864PMYB-1 | Yellow/Blue | 128×64 | 21.74 × 10.86 | 38.5 × 28.5 × 2.37 | 120 cd/m² |
| 1.3″ | HQ1312864PMB-1 | Blue | 128×64 | 29.42 × 14.70 | 35.4 × 33.5 × 2.4 | 120 cd/m² |
| 1.3″ | HQ1312864PMW-1 | White | 128×64 | 29.42 × 14.70 | 35.4 × 33.5 × 2.4 | 120 cd/m² |
| 1.5″ | HQ1502828PMV-1 | Color | 128×128 | 26.86 × 26.86 | 34.0 × 47.0 × 2.0 | 120 cd/m² |
| 1.54″ | HQ1542864PMY-1 | Yellow | 128×64 | 35.06 × 17.52 | 60.0 × 37.0 × 7.2 | 150 cd/m² |
| 1.54″ | HQ1542864PMB-1 | Blue | 128×64 | 35.06 × 17.52 | 60.0 × 37.0 × 7.2 | 120 cd/m² |
| 2.23″ | HQ2232864PMW-1 | White | 128×32 | 55.02 × 13.10 | 74.0 × 34.0 × 7.2 | 120 cd/m² |
| 2.23″ | HQ2232864PMB-1 | Blue | 128×32 | 55.02 × 13.10 | 74.0 × 34.0 × 7.2 | 120 cd/m² |
| 2.42″ | HQ242864PMG-1 | Green | 128×64 | 55.01 × 27.49 | 66.1 × 50.0 × 6.8 | 120 cd/m² |
| 2.42″ | HQ242864PMY-1 | Yellow | 128×64 | 55.01 × 27.49 | 66.1 × 50.0 × 6.8 | 120 cd/m² |
| 2.7″ | HQ272864PMW-1 | White | 128×64 | 61.41 × 30.69 | 73.0 × 57.0 × 6.8 | 60 cd/m² |
| 2.7″ | HQ272864PMY-1 | Yellow | 128×64 | 61.41 × 30.69 | 73.0 × 57.0 × 6.8 | 100 cd/m² |
| 3.12″ | HQ325664PMW-1 | White | 256×64 | 76.78 × 19.18 | 114.0 × 36.0 × 10.5 | 80 cd/m² |
| 3.12″ | HQ325664PMY-1 | Yellow | 256×64 | 76.78 × 19.18 | 114.0 × 36.0 × 10.5 | 80 cd/m² |
| 3.12″ | HQ325664PMB-1 | Blue | 256×64 | 76.78 × 19.18 | 114.0 × 36.0 × 10.5 | 80 cd/m² |
| 3.12″ | HQ325664PMG-1 | Green | 256×64 | 76.78 × 19.18 | 114.0 × 36.0 × 10.5 | 80 cd/m² |
| 5.5″ | HQ55664PMG-1 | Green | 256×64 | 135.65 × 33.89 | 157.3 × 50.3 × 7.8 | 80 cd/m² |
Discover QIHAN’s Industrial OLED Display Manufacturing
Custom OLED Display Products
QIHAN provides professional OLED display customization services for a wide range of applications. Simply share your display requirements, dimensions, interface, or product concept, and our engineering team will develop a reliable OLED solution tailored to your project.
From standard OLED modules to fully customized designs, QIHAN helps bring your ideas to life with high-quality displays, fast development, and dependable long-term supply.
High-quality OLED Displays for Industrial Applications
Enhance efficiency and control with OLED displays designed for industrial HMI, robotics, logistics equipment, and automation systems.
Deliver clear information and reliable performance in EV charging, transportation, automotive, marine, and aerospace applications.
Create smarter user experiences with OLED displays for home appliances, building controls, and professional equipment.
Support accurate data visualization in medical devices, laboratory instruments, patient care, and rehabilitation systems.
Bring immersive visuals to gaming, infotainment, and interactive entertainment products with high-contrast OLED technology.
Attract attention and improve customer engagement with OLED displays for POS systems, digital signage, and smart retail solutions.
Frequently Asked Questions FAQ
What types of OLED displays does QIHAN provide?
We offer character OLED displays, graphic OLED displays, monochrome OLED modules, PMOLED displays, AMOLED displays, round OLED displays, and custom OLED solutions.
What interfaces are available?
Common interfaces include SPI, I²C, UART, Parallel, RGB, and MIPI depending on the display model.
Can QIHAN customize OLED displays?
Yes. We support display size, resolution, interface, FPC design, touch panel integration, cover glass, brightness enhancement, and complete custom display development.
Are OLED displays suitable for industrial applications?
Yes. Many of our OLED modules are designed for industrial environments and can operate across extended temperature ranges.
What is the minimum order quantity?
MOQ depends on the display type and customization level. Standard products typically support low-volume orders for evaluation and prototyping.
Ready to Find the Right OLED Display?
Contact QIHAN today to discuss your OLED display requirements and request a quotation.
